■ 基本信息
別名: | pCDNA3-HA-N |
啟動子: | CMV |
復制子: | pUC |
終止子: | bGH poly(A) signal |
質粒分類: | 哺乳細胞真核表達載體；蛋白過表達質粒 |
質粒大小: | 5484bp |
質粒標簽: | N-HA |
原核抗性: | Amp |
真核抗性: | G418 |
克隆菌株: | DH5a |
培養條件: | 37度 |
表達宿主: | 哺乳細胞 |
誘導方式: | 無需誘導 |
5'測序引物: | T7：TAATACGACTCACTATAGGG |
3'測序引物: | SP6：ATTTAGGTGACACTATAGAA |
備注: |
載體上有起始密碼子ATG，注意不要移碼。 |
■ 質粒屬性
質粒宿主: | 哺乳細胞 |
質粒用途: | 蛋白表達 |
片段類型: | ORF
|
片段物種: | 空載體
|
原核抗性: | Amp |
真核抗性: | G418 |
熒光標記: |
|
■ 質粒簡介
pCDNA3.0-HA-N載體是專門設計用來在哺乳細胞中進行高水平的穩定表達和瞬時表達。其中人巨細胞病毒早期啟動子(CMV)在廣泛的哺乳動物細胞中可以實現高表達。新霉素抗性基因可以用來篩選穩定細胞系，具體用G418篩選，另外HA做為標簽?zāi)茉赪B實驗中更方便的檢測到目的基因是否表達。
pcDNA3.0-HA-N is 5.4 kb vectors designed for high-level stable and transient expression in mammalian hosts. High-level stable and non-replicative transient expression can be carried out in most mammalian cells. The vectors contain the following elements:
Human cytomegalovirus immediate-early (CMV) promoter for high-level expression in a wide range of mammalian cells.
Neomycin resistance gene for selection of stable cell lines.
HA epitope for Western blot experiment.
質粒只保證關鍵序列正確，不保證表達效果。

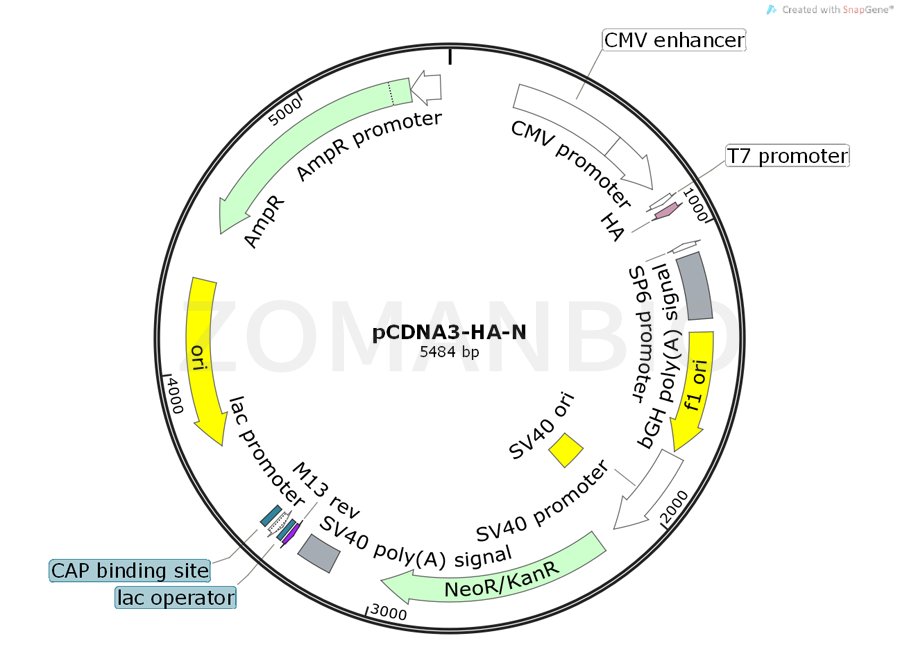

■ 質粒圖譜
■ 質粒序列
質粒序列請下載：
ZK345pCDNA3-HA-N哺乳表達質粒.txt
